Granted a patent in the United States US011692667B2
KEY FEATURES
- Height of only 100mm, or 4 inches, and a weight of only 688 grams, or 1.5 pounds
- Clever layout and clear controls
- 210° (±105° symmetrical) oversized pitch angle with no mechanical interference between movements
- Worm-geared drive, self-locking at any angle
- Safety Payload Weight: 12KG or 26lb
- Clutch for quick tilting adjustment
- Additional fine-tuning knob for convenience in the extreme tilting position
- High-precision three-axis Leveling Vials(Bubble Levels), made in the UK
- 60mm-long clamp on the main bearing platform
- Detachable customized caps to meet different photography needs and avoid interference between XYZ dimensions
- Compact and safe configuration for transportation
- Ready for video shooting when S20&Panning Handle is attached
- Precision machining and manufacturing
SPECS
Product Specifications ▼
| Specification |
Details |
| Net Weight |
700 g |
| Dimensions (L×W×H) |
100×85×100 mm |
| Maximum Load |
12 kg |
| Tilt Angle |
-105°/+105° |
| Roll Angle |
-20°/+20° |
| Pan Angle |
360° |
| Gear Type |
Worm gear |
| Gear Material |
Worm wheel: Brass / Worm shaft: Stainless steel |
| Housing Material |
Aluminum |
| Bubble Level |
3 pcs, cylindrical type, made in UK |
| Clamp Standard |
ROGETI Standard (Arca-Swiss compatible) |
| CAP-X2Y |
Included |
| CAP-GZA |
Optional |
| CAP-360 |
Optional |
| CAP-MLS Macro |
Optional |
| S20 Multi-function Handle |
Optional |
| Module Storage Case |
Optional |
| SPN Multi-function Base |
Included |
| QRS-R14 Square Quick-release Plate |
Included |
| QRS-R38 Square Quick-release Plate |
Optional |
| QRP-116 Long Quick-release Plate |
Optional |
| DCL-X2Y Orthogonal Double-sided Clamp |
Optional |
| DCL-PRL Coaxial Rotary Double-sided Clamp |
Optional |
WHAT'S IN THE BOX
- RG-1 Geared Tripod Head MarkIV
- CAP-X2Y Instant Orthogonal Exchange Cap
- QRS-R14 Square Plate
- Red & Black Soft Ruber Knob Covers
- NEW SPN Quick-Release Base
OPTIONS
- CAP-360 Panning Head & S20 Handle
- CAP-GZA Geared Panning Head(prcecision geared rotation around the Z-Axis)
- Micro-positioning Linear Stage
- ROGETI Accessories Kit (CAP-360 Panning Head & S20 Handle; CAP-GZA Geared Panning Head; Micro-positioning Linear Stage)
Rooted in Professionalism, Driven by Innovation

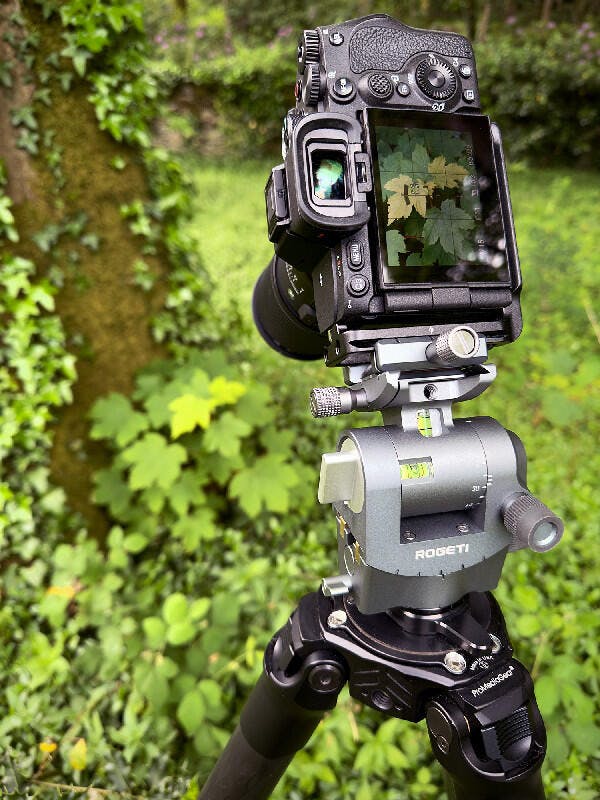

The ROGETI RG-1 was born from an ambitious wish list: extensive pitching range, effortless operation, compact form, lightweight construction,strong load capacity, exceptional impact resistance, precise leveling capability, modular versatility, and seamless panoramic photography. Through an elegant and intelligent design approach, this ambitious vision has been realized, transforming aspirational features into practical realities and resulting in the creation of an innovative and powerful geared head.
Simple and Intuitive Knob Layout
The RG-1 features an efficient and clear knob layout, eliminating the confusion typically associated with geared tripod heads that have multiple adjustment knobs. The symmetric structure of the RG-1 helps users immediately understand the function of each knob, resulting in a smoother shooting process.
Light Weight and Compact Design
Weighing only 1.5 lbs (680 grams) and measuring just 4 inches (100mm) tall, the RG-1 is exceptionally compact and lightweight. Despite its small footprint, its robust construction and 60mm-long bearing platform provide secure support for heavy camera setups and large lenses.
±105° Symmetrical, Large Pitch Range with No Axis Interference
The RG-1’s patented design offers a groundbreaking ±105° pitch range (210° total), surpassing the capabilities of traditional geared heads. After initial leveling adjustments using the fine-tuning geared knob, the platform remains consistently level across the entire pitch range, removing the need for repeated leveling adjustments common with traditional tripod heads. This design simplifies substantial pitch changes without forcing photographers to reverse camera orientation.
Compact and Secure for Travel
When fully tilted, the RG-1’s main bearing platform seamlessly nests into the main body, significantly reducing overall packing size. This design also improves impact resistance during transport, making the RG-1 both safer and more travel-friendly.
Durable Base Platform
Constructed from a solid block of metal, the RG-1’s base platform and pitching barrel offer outstanding stability and durability. Its extended 60mm clamp length ensures exceptional stability, making it ideal for heavy telephoto lenses and precise time-lapse photography.
Detachable Modular CAP System
The RG-1 features a detachable modular CAP system, merging the best features of both 4-D and 3-D tripod heads. While 4-D heads enable 360° panoramic captures, they often introduce adjustment interference. The RG-1 maintains independent 3-D adjustments, allowing precise XYZ control without interference. Users can select different CAP modules tailored to specific shooting scenarios.
X-Y Orthogonal Exchange Cap (CAP-X2Y)
The CAP-X2Y provides precise 90-degree shifts in camera orientation, featuring Arca-type dovetail mounts on both X and Y axes. This allows for precise, independent XYZ adjustments without dimensional conflicts. Additionally, the CAP-X2Y serves as a camera elevator when mounted parallel to the base platform.
SPN Quick-Release Base
Designed specifically for the RG-1 Geared Head, the SPN Quick-Release Base integrates dual Rogeti Dowel Pins for fast, secure mounting and dismounting from tripods or other Rogeti clamps. This exclusive compatibility ensures maximum stability and ease-of-use, simplifying your photographic workflow.
CAP-GZA Geared Panning Head (options)
The optional CAP-GZA geared panning head delivers precision-driven panoramic movement without clutch interference. Equipped with precise gearing mechanism, a Rogeti Dowel Pin and a full 360-degree scale, it ensures accurate and smooth panoramic adjustments, giving photographers complete control.
CAP-360 (options)
The RG-1’s optional panoramic CAP-360 offers robust locking strength, preventing unwanted rotation under external stress. A multi-function handle can be attached for smooth panoramic video panning, enhancing overall versatility.
Multi-function Handle S20 (options)
The optional S20 handle further expands the RG-1’s capabilities. It features detachable shaft and grip components, each equipped with standard 1/4-inch and 3/8-inch screw mounts for versatile setup options. Video Shooting: Attach to the base platform or CAP-360 to achieve smooth, controlled panning movements ideal for dynamic video recording.
Panoramic Photography and Elevation: Vertically attach the handle to the RG-1’s base platform using the recessed stud connector. This setup increases distance between the panoramic camera and tripod, reducing tripod visibility and enabling more immersive panoramic images.
