MORE DETAILS OF T32MAX
SPECFICATIONS
| TRIPOD |
T32MAX |
| Center Column Diameter |
32mm |
| Number of Sections per Leg |
3 |
| Leg Tube Diameter |
22mm/25mm/28mm |
| Leg Tube Material |
Carbon Fiber |
| Leg Tube Angle |
23°/0° |
| Leg Tube Scale |
Yes |
| Net Weight |
1.38kg (excluding center column) |
| Spike Interface |
M10 |
| Safety Load* |
15kg |
| Level |
2 per column (Imported from the UK) |
| Folded Length |
57.5cm (excluding center column) |
| Height Range |
53-124cm (excluding center column) |
| Tripod Position Heights |
See individual center column condition diagrams |
| Center Column Options |
C32B |
C32G |
C32K |
C32T |
C32R |
| Mount Specifications |
3/8” Stud |
3/8” Stud |
Arca Clamp |
Arca Clamp |
3/8” Stud |
| Weight |
0.47kg |
0.62kg |
0.25kg |
0.25kg |
0.09-0.15kg (depending on length) |
| Safety Load* |
Outer Column: 15kg Inner Column: 4kg |
Outer Column: 6kg |
Outer Column: 15kg |
Outer Column: 15kg |
Outer Column: 15kg |
WHAT'S IN THE BOX
- T32MAX Tripod Legs
- C32B Center Column/C32R Center Column
- Tablet Holder
- Custom Made Wrench
- Assembler
- ROGETI Tripod Bag
OPTIONS
NOTICE
The traditional leg angle selector is canceled on T32MAX. The patented center column C32B can be used as an individual mini tripod when various perspectives are required.
ACCESSORIES IN BOX
Sandfeet for sandy or muddy terrain
Sandfeet are designed for use on sandy or muddy ground to prevent dirt and debris from entering the tripod legs. They can be directly screwed onto the ends of the T32MAX leg sections.
Assembler Center Column Integrator
The ASSEMBLER Center Column Integrator can simultaneously secure the T32MAX tripod (with center column and RG-1 geared head), two additional center columns (or extension columns), and the S20 multifunctional handle. It also allows for quick attachment of a strap for bag-free carrying. Additionally, it includes three sandfeet for use on sandy or muddy terrain. Its compact design ensures easy storage and transport.

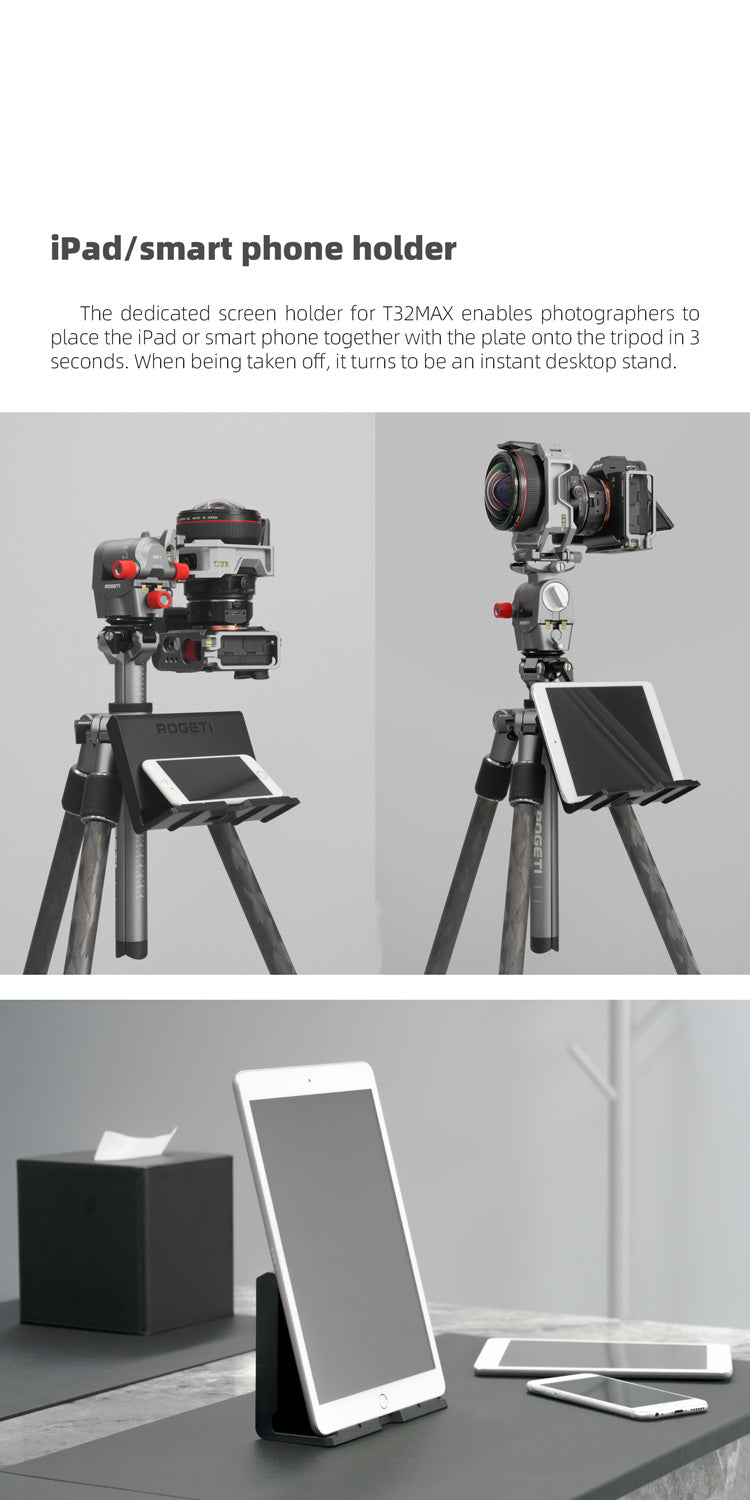

Tablet Holder for Monitoring
The Tablet Holder is a quick and convenient accessory designed for the T32 MAX tripod, allowing stable mounting of a tablet or smartphone within three seconds. Removal is even faster, taking just one second.
Once detached, the tray can double as a desktop stand, making it easy to review footage or collaborate with clients and team members during breaks, enhancing workflow efficiency and shooting productivity.
The Tablet Holder includes two mounting brackets (one long and one short) and an L-shaped tray. The short bracket is suitable for most smartphones and tablets, while the long bracket is recommended for larger tablets over 12 inches. Once installed, the mounting brackets can remain fixed for everyday use without the need for frequent removal.
Wrench Kit for Tripod Adjustment
The Wrench Kit is designed to adjust the opening and closing tension of the T32MAX tripod legs and their central connectors. Its capsule-shaped, nested design makes it easy to store and carry. The kit can be disassembled into four wrenches: two large and two small.
The large wrenches are used to adjust the tension of the three legs on the T32MAX tripod, while the small wrenches are for the C328 tripod. If the legs become loose, the corresponding wrench can be used for tightening.
